Why Do We Care About Trees?

• A decision tree predicts by asking a sequence of simple questions.

• Each question splits the data into smaller and more homogeneous groups.

• Trees can be used for both classification and regression.

Email

Contains many links?
→ Yes

Contains suspicious words?
→ Yes

Classify as: Spam

Loans

Income high enough?
→ Yes

Debt too large?
→ No

Classify as: Approve

Biology

Petal length < 2.5 cm?
→ Yes

Petal width < 1 cm?
→ Yes

Classify as: Setosa

The Main Idea

Instead of fitting one single equation, a tree repeatedly splits the predictor space into regions.

• Start with all training data at the root.

• Ask a question such as Petal.Length < 2.5?

• Split the data into two child nodes.

• Keep splitting until the groups are simple enough.

• At the end, each leaf makes a prediction.

• Root node: the first split

• Internal node: a question

• Leaf (terminal) node: the final prediction

%%{init: {'theme':'base', 'themeVariables': { 'fontSize': '24px'}}}%%
graph TD
    A[An iris] --> B{Petal length < 2.5?}
    B -- Yes --> C[Predict setosa]
    B -- No --> D{Petal width < 1.7?}
    D -- Yes --> E[Predict versicolor]
    D -- No --> F[Predict virginica]

    classDef start fill:#E3F2FD,stroke:#1E88E5,stroke-width:2px,color:#0D47A1,font-size:24px;
    classDef question fill:#FFF3E0,stroke:#FB8C00,stroke-width:2px,color:#E65100,font-size:24px;
    classDef setosa fill:#E8F5E9,stroke:#43A047,stroke-width:2px,color:#1B5E20,font-size:24px;
    classDef versicolor fill:#F3E5F5,stroke:#8E24AA,stroke-width:2px,color:#4A148C,font-size:24px;
    classDef virginica fill:#FCE4EC,stroke:#D81B60,stroke-width:2px,color:#880E4F,font-size:24px;

    class A start;
    class B,D question;
    class C setosa;
    class E versicolor;
    class F virginica;


Trees Split the Predictor Space

%%{init: {'theme':'base', 'themeVariables': { 'fontSize': '24px'}}}%%
graph TD
    A[An iris] --> B{Petal length < 2.5?}
    B -- Yes --> C[Predict setosa]
    B -- No --> D{Petal width < 1.7?}
    D -- Yes --> E[Predict versicolor]
    D -- No --> F[Predict virginica]

    classDef start fill:#E3F2FD,stroke:#1E88E5,stroke-width:2px,color:#0D47A1,font-size:24px;
    classDef question fill:#FFF3E0,stroke:#FB8C00,stroke-width:2px,color:#E65100,font-size:24px;
    classDef setosa fill:#E8F5E9,stroke:#43A047,stroke-width:2px,color:#1B5E20,font-size:24px;
    classDef versicolor fill:#F3E5F5,stroke:#8E24AA,stroke-width:2px,color:#4A148C,font-size:24px;
    classDef virginica fill:#FCE4EC,stroke:#D81B60,stroke-width:2px,color:#880E4F,font-size:24px;

    class A start;
    class B,D question;
    class C setosa;
    class E versicolor;
    class F virginica;


• A tree usually makes axis parallel splits.
• In two predictors, these splits create rectangles.
• Every rectangle corresponds to one leaf.

How Does the Tree Choose a Split?

For a classification tree, the goal is to create purer groups.

A common impurity measure is the Gini index:

\[ \text{Gini} = 1 - \sum_{k=1}^{K} p_k^2, \]

where \(p_k\) is the proportion of class \(k\) inside a node.

• If a node is all one class, Gini = 0.
• If a node is a mixture of classes, Gini is larger.
• The tree searches over many candidate questions and picks the split that most reduces impurity.

Gini Intuition

Almost pure leaf

• 9 setosa
• 1 versicolor
• 0 virginica

\[ \text{Gini} = 1 - (0.9^2 + 0.1^2 + 0^2) = 0.18 \]

Mixed leaf

• 4 setosa
• 3 versicolor
• 3 virginica

\[ \text{Gini} = 1 - (0.4^2 + 0.3^2 + 0.3^2) = 0.66 \]

Smaller Gini means a cleaner, easier to classify node.

How Does Prediction Work?

To classify a new observation:

1. Start at the root.
2. Check the first rule.
3. Move left or right.
4. Continue until you reach a leaf.
5. Predict the majority class in that leaf.

A leaf can also report estimated class probabilities.

Example:

• Leaf contains 18 versicolor and 2 virginica.
• Predicted class = versicolor
• Estimated probabilities: 0.90 and 0.10

%%{init: {'theme':'base', 'themeVariables': { 'fontSize': '24px'}}}%%
graph TD
    A[NEW iris] --> B{Petal length < 2.5?}
    B -- Yes --> C[Predict setosa]
    B -- No --> D{Petal width < 1.7?}
    D -- Yes --> E[Predict versicolor]
    D -- No --> F[Predict virginica]

    classDef start fill:#E3F2FD,stroke:#1E88E5,stroke-width:2px,color:#0D47A1,font-size:24px;
    classDef question fill:#FFF3E0,stroke:#FB8C00,stroke-width:2px,color:#E65100,font-size:24px;
    classDef setosa fill:#E8F5E9,stroke:#43A047,stroke-width:2px,color:#1B5E20,font-size:24px;
    classDef versicolor fill:#F3E5F5,stroke:#8E24AA,stroke-width:2px,color:#4A148C,font-size:24px;
    classDef virginica fill:#FCE4EC,stroke:#D81B60,stroke-width:2px,color:#880E4F,font-size:24px;

    class A start;
    class B,D question;
    class C setosa;
    class E versicolor;
    class F virginica;


Why Are Trees Popular?

• Very interpretable
• Handle nonlinear relationships naturally
• Capture interactions automatically
• Need little preprocessing
• Work with numerical and categorical predictors

But they also have weaknesses:

• can overfit
• can be unstable
• one small data change can change the tree a lot
• axis parallel splits can be too rigid

Overfitting and Pruning

A very deep tree can memorize the training data.

Common controls:

• tree_depth: limit how deep the tree can grow
• min_n: require enough observations before a split
• cost_complexity: penalize unnecessary splits

A shallow tree is often easier to explain and generalizes better.

Load and Prepare Data

iris_tree <- as_tibble(iris) |>
  select(Species, Petal.Length, Petal.Width) |>
  mutate(Species = as.factor(Species))

iris_tree

# A tibble: 150 × 3
  Species Petal.Length Petal.Width
  <fct>          <dbl>       <dbl>
1 setosa           1.4         0.2
2 setosa           1.4         0.2
3 setosa           1.3         0.2
4 setosa           1.5         0.2
5 setosa           1.4         0.2
6 setosa           1.7         0.4
# ℹ 144 more rows

Training and Test Data

set.seed(2026)
iris_split <- initial_split(iris_tree, prop = 0.8, strata = Species)
train_tbl <- training(iris_split)
test_tbl  <- testing(iris_split)

dim(train_tbl)

[1] 120   3

dim(test_tbl)

[1] 30  3

Fit the Tree

# recipe
tree_recipe <-
  recipe(
    Species ~ Petal.Length + Petal.Width,
    data = train_tbl)

# model
tree_spec <- decision_tree(
  mode = "classification",
  tree_depth = 2,
  cost_complexity = 0.001) |>
  set_engine("rpart")

# workflow and fit
tree_fit <- workflow() |>
  add_recipe(tree_recipe) |>
  add_model(tree_spec) |>
  fit(data = train_tbl)

• tree_depth = 2 keeps the tree simple.
• cost_complexity discourages unnecessary splits.

══ Workflow [trained] ══════════════════════════════════════════════════════════
Preprocessor: Recipe
Model: decision_tree()

── Preprocessor ────────────────────────────────────────────────────────────────
0 Recipe Steps

── Model ───────────────────────────────────────────────────────────────────────
n= 120

node), split, n, loss, yval, (yprob)
      * denotes terminal node

1) root 120 80 setosa (0.3333 0.3333 0.3333)
  2) Petal.Length< 2.6 40  0 setosa (1.0000 0.0000 0.0000) *
  3) Petal.Length>=2.6 80 40 versicolor (0.0000 0.5000 0.5000)
    6) Petal.Width< 1.75 41  2 versicolor (0.0000 0.9512 0.0488) *
    7) Petal.Width>=1.75 39  1 virginica (0.0000 0.0256 0.9744) *

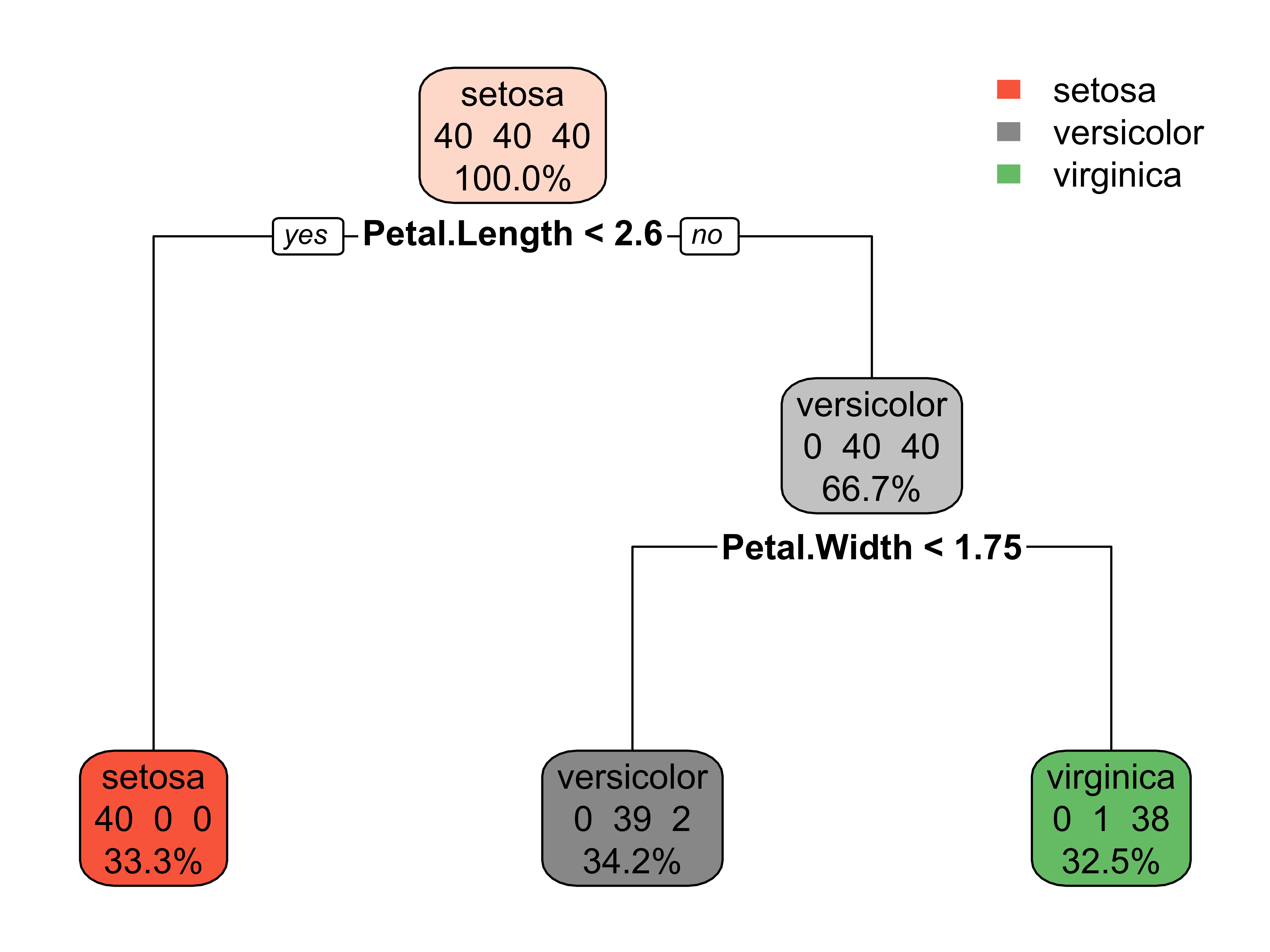

Visualize the Fitted Tree

Read the tree from top to bottom. Every split is a yes or no question.

Prediction on the Test Data

pred_tbl <- bind_cols(test_tbl, predict(tree_fit, test_tbl),
                      predict(tree_fit, test_tbl, type = "prob"))
pred_tbl[sample(1:30, 5), ] |> select(-c("Petal.Length", "Petal.Width"))

# A tibble: 5 × 5
  Species    .pred_class .pred_setosa .pred_versicolor .pred_virginica
  <fct>      <fct>              <dbl>            <dbl>           <dbl>
1 versicolor versicolor             0           0.951           0.0488
2 virginica  virginica              0           0.0256          0.974
3 setosa     setosa                 1           0               0
4 setosa     setosa                 1           0               0
5 versicolor versicolor             0           0.951           0.0488

tree_pred <- predict(tree_fit, test_tbl) |> pull(.pred_class)
table(truth = test_tbl$Species, pred = tree_pred)

            pred
truth        setosa versicolor virginica
  setosa         10          0         0
  versicolor      0         10         0
  virginica       0          3         7

mean(tree_pred == test_tbl$Species)

[1] 0.9

• The fitted tree gives explicit rules.
• The rules are easy to explain to another person.
• The model is nonlinear without writing a complicated equation.
• Tree tuning matters because a tree can be too shallow or too deep.
• Decision trees are rule based models.
• They are interpretable and flexible.
• They work for both classification and regression.
• They can overfit, so tuning and pruning matter.
• They are a natural bridge to random forests and boosting later.

sklearn.tree.DecisionTreeClassifier

Load Packages and Data

import pandas as pd
import matplotlib.pyplot as plt
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
from sklearn.tree import DecisionTreeClassifier, plot_tree
from sklearn.metrics import confusion_matrix, accuracy_score
# Load the iris dataset as pandas objects
iris = load_iris(as_frame=True)
print(iris.frame.head(3))

   sepal length (cm)  sepal width (cm)  ...  petal width (cm)  target
0                5.1               3.5  ...               0.2       0
1                4.9               3.0  ...               0.2       0
2                4.7               3.2  ...               0.2       0

[3 rows x 5 columns]

# Choose two predictor variables
X = iris.frame[["petal length (cm)", "petal width (cm)"]]
# Choose the response variable: flower species
y = iris.target

With as_frame=True, scikit-learn returns the data in pandas form, so the predictors are available as a DataFrame and the target is available as a pandas Series or DataFrame rather than only as NumPy arrays. The returned object is a Bunch, which is a dictionary-like container holding pieces such as the data, target, feature names, and target names.

A good way to picture iris is:

iris.frame = the full table

iris.data = predictor columns only

iris.target = response variable coded as numbers

iris.target_names = species names corresponding to those numbers

Training and Fitting

X_trn, X_tst, y_trn, y_tst = train_test_split(X, y, test_size=0.2,
                                              random_state=2026, stratify=y)
tree = DecisionTreeClassifier(max_depth=2, ccp_alpha=0.001, random_state=2026)
tree.fit(X_trn, y_trn)

DecisionTreeClassifier(ccp_alpha=0.001, max_depth=2, random_state=2026)

In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

In scikit-learn, ccp_alpha is defined as the complexity parameter for Minimal Cost-Complexity Pruning, and the chosen subtree is the largest one with cost complexity smaller than ccp_alpha. In rpart, cp is the complexity parameter used to trim or prune the tree. These are very closely related CART-style pruning controls, but because the implementations are in different libraries, you should not assume that 0.001 in scikit-learn and 0.001 in rpart will always give exactly the same final tree.

Visualize the Tree

• Tree
• Code

plot_tree(
    tree,
    feature_names=X.columns,
    class_names=iris.target_names,
    filled=True
)
plt.show()

Prediction and Accuracy

y_pred = tree.predict(X_tst)
confusion_matrix(y_tst, y_pred)

array([[10,  0,  0],
       [ 0, 10,  0],
       [ 0,  2,  8]])

accuracy_score(y_tst, y_pred)

0.9333333333333333
